Gauges & Fixtures

We are the Manufacturer & Suppliers of all tyeps of Gauges.

Gauges Manufacturer in Aurangabad

We Smash Industry, a leading supplier and service provider to Gauges manufacturing in Aurangabad, We are having expertise in Making all types of special and standard carbide tools, Mechanical Jigs & Fixtures, All Types of Special and standard Gauges, etc. Our facility is in the city of Aurangabad, Maharashtra, India. Our customers value features such as ease of installation, lightweight design, high tensile strength, precision engineering, corrosion resistance, dimensional accuracy, reliability, and high performance. Gauge is a system used in manufacturing and engineering to determine if a measurement is greater or smaller than a reference standard dimension, either directly or indirectly. Few gauges specifically determine the size of the object to be gauged, but most gauges simply show whether the test object’s dimensions are close enough to those of the standard—that is, whether they are within the tolerance range for a specific object. Gauges may be mechanical or electrically powered.

We are the Manufacturer & Suppliers of all tyeps of Gauges.

View All Range

We offer the same product as the photos you see.

Profile gauges

Relation gauge

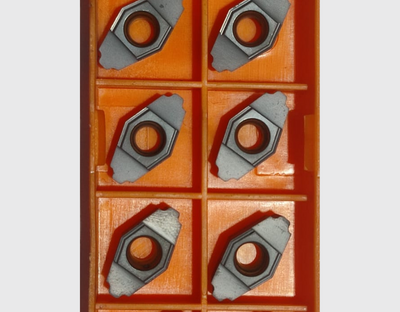

Profile Insert

Snap gauges

Plane Plug gauges

CT Brezd profile cutter

S/E carbide plug gauges

Snap gauges

PCD GAUGES

OD setting mastar

OD runout checking gauge

SPL collet for Gundrill

Tepar mandrill

Groove distance gauge

Carbide wirth gauges

Functional gauges

Keyway Depth checking gauges

Circlip Distance checking gauge

Perpendicular chucking gauges

Perpendicular chucking gauges

Depth checking gauges

Perpendicular chucking gauges

Spline ring gauge

Thread mandrill

SPL TYPE DEPTH CHECKING GAUGES

Carbide AIR RING GAUGES WITH SETING PLUG

RING GAUGE

INDICATIVE TYPE RUN OUT CHECKING GAUGE

Pin Plug Gauge

Plug Gauge

Our Office Address

SMASH INDUSTRY, W-24
Near Kamgar Chowk MIDC Waluj, Aurangabad 431136

General Enquiries

sales@smashindustry.co.in
, smashindustry8@gmail.com

Call Us

9822998987
8857061686
9623311770
8446812375

Video

Air Gauges

Air gauging is non-contact means of precise comparative measurement which offers users the advantages of improved workflow, increased productivity and decreased downtime. Air gage is best proven method of gauging a bore of good surface finish with very high accuracy, it is the only system that gives 0.001 mm accuracy and reliability in the harsh shop floor environment.

Air Plug Gauges

Ideal for Checking Holes with :- Standard 2-jets, For Size, Taper and Orality.
Works on Null balance principle having Analogue display (Mechanical Dial Gauge).
Non-Contact Gauging system for checking I.D.

Range :- Carbide 10 mm to 150 mm & Steel 5 mm to 450 mm

Air Plug Gauges

Ideal for Checking Holes with :- Standard 2-jets, For Size, Taper and Orality.
Works on Null balance principle having Analogue display (Mechanical Dial Gauge).
Non-Contact Gauging system for checking I.D.

Range :- Carbide 10 mm to 150 mm & Steel 5 mm to 450 mm

Air Ring Gauges

Ideal for Checking Shafts with :- Standard 2-jets, For Size, Taper and Orality.
For shouldered shafts, jets placed near the mouth. Works on Null balance principle having Analogue display (Mechanical Dial Gauge). Non-Contact Gauging system for checking O.D.

Range :- Carbide 10 mm to 150 mm & Steel 5 mm to 450 mm Material – Special Wear Resistance Tungsten Carbide Steel – Oil Hardened Non-shrinkable Steel (OHNS / En31)

We Manufacture Following Types Of Threads

THREAD PLUG GAUGES (METRIC & UNIFIED)

Plug Range– 0.8 mm To 250 mm
Standards– Metric – Din Iso 1502 / ANSI/ASME B1.16M
Unified – ANSI/ASME B1.2
Material– Oil Hardened Non-shrinkable Steel (OHNS / En31)
Lead Time– 1 Week (depends On Qty)
Customization As Per Customer Requirement And Specification.

SPLINE GAUGES

SPLINE RING GAUGES

Use-For Quick and Accurate inspection of external involute/serration/straight spline
Range– Dia. 12mm to 150 mm
Quality Standard– Involute Spline ANSI B92.1 1970
Material -OHNS SAE 01/02
Profile -Involute/serration/straight
Gauge Quality -As Per DIN-3962 Class-5
Customization As Per Customer Requirement And Specification.
Lead Time – 1 Week (depends On Qty)

SPLINE PLUG GAUGES

Use-For Quick and Accurate inspection of internal
involute/serration/straight spline
Range– D Dia. 12mm to 150 mm
Quality Standard– Involute Spline ANSI B92.1 1970
Material -OHNS SAE 01/02
Profile – Involute/ Serration/ Straight
Gauge Quality -As Per DIN-3962 Class-5
Customization As Per Customer Requirement And Specification.
Lead Time – 1 Week (depends On Qty)

SPLINE TAPER MANDRELS

Use-For machining an inspection operation like
turning, milling gear cutting etc. For
production of spline component.
Profile type-Involute, Serration, Straight.
Range– Dia.15mm to 200 mm
Length – 150mm, 200mm, 250mm, 300mm.
Hardness -58-60 Hrc.

Taper Gauges

Taper Gauges

Taper plug and ring gauge
Covers requirements for taper plug gauges and taper ring
gauges, used for checking taper ID and taper OD of
components.
Taper ring is blue matched up to 90 ~ 95 % with respect to
plug.
Customization as per customer requirement and
specification.

Material – EN31 / OHNS
Range – Ring – 2 mm – 250 mm
Plug – 2 mm – 400 mm
Lead time – 2 – 3 weeks (depends on size and qty)

Standard Gauges

SNAP GAUGES

Type
  • Single Ended Snap Gauge
  • Double Ended Snap Gauge
  • Span Gauge
  • Measuring Portion Thk. or Blade Type
Ranges

0.5 – 1000 mm
MATERIAL :- Carbide / Steel Standard :- IS 3455 Lead Time :- 1 Week

PLUG GAUGES

Type
  • Reversible Type Plug Gauge
  • Taper Shank Type Plug Gaug
  • Tri-lock Type Plug Gauge
  • Plate Type Plug Gauge
  • A + B Type Plug Gauge (carbide + Steel)
  • Progressive Plug Gauge
Ranges
  • 0.5 – 10 mm
  • 10 – 40 mm
  • 40 – 100 mm
  • 100– 650 mm
  • 0.5 – 100 mm
  • 0.5 – 100 mm

MATERIAL :- Carbide / Steel Standard :- IS 3455 Lead Time :- 1 Week

RING GAUGES

Type
  • Range
  • Material
  • Lead Time
Ranges
  • 0.5 – 200 mm
  • Carbide / Stee
  • 1 Week (depends On Qty And Size)

MATERIAL :- Carbide / Steel Standard :- IS 3455 Lead Time :- 1 Week

WIDTH GAUGES

Type
  • Slip Master
  • Height Block
  • Reversible Type
  • T – Type Width Gauge
Ranges
  • 1.0005 – 1000 mm
  • 5 – 100 mm
  • 1 – 40 mm
  • 10 – 100 mm

MATERIAL :- Carbide / Steel Standard :- IS 3455 Lead Time :- 1 Week

Slip Gauge Set
Measuring Pins
Od Masters
Width + Snap Gauges

Range – 1.0005 – 150 mm
Range – 0.5 – 150 Mm R
Range – 5 – 150 Mm R
Range – 5 – 50 Mm
MATERIAL :- Carbide / Steel Standard :- IS 3455 Lead Time :- 3 Weeks for Measuring Pin set & Slip Gauge Set
